Underground Drainage System


The Systems
Supreme under ground drainage and sewerage system have been designed with a view to modern man’s inclination towards health, hygiene and his aversion to filth and pollutants. Due to unpleasant nature of human waste, a drainage system should be “out of sight and out of mind”. Most of the drainage systems are actually hidden from sight. It is hence important that it should be of superior quality and should be able to function year after year without leakage or defects. It becomes unpleasant and expensive to address such problem that arise in conventional underground pipelines unexpectedly, and which may happen due to poor product quality or due to faulty construction and outdated technology.

This system is intended to carry soil and waste from S.W.R. drainage system to roadside sewers or drains and as sewerage system also. This system is highly recommended for buildings where hygiene is a prerequisite. The system can also be used for rainwater collection and disposal, including rainwater harvesting. In short the system provides complete solution for underground drainage and sewerage application. The system is completely watertight and hence it is free from ingress and seepage of water and hence considered to be most hygienic. Unlike conventional drainage products there is no fear of pollution of underground water, soil or ill effects on building foundations. In this fast age, this product is blessing to housing and construction industry as tremendous saving in time and labor is possible. This is because installation of this system is quite simple and fast. The choice of the raw material, the structural accuracy and the strict quality control imparts high degree of


Features & Benefits : Great features of this versatile system are

  • Great flexibility -
    Due to availability of readymade inspection chambers and manhole, long lengths of lighter weight pipes and different component, installation of this system is very convenient and fast.
  • Perfect hydraulic properties -
    Mirror smooth inside surface of the pipes and streamline design of the chambers, greatly reduces the possibility of blockages and maximize flow characteristics. As a result, carrying capacity of these pipes can be increased by 40% over concrete pipes.
  • Great strength -
    System is sufficiently durable to meet site-loading requirements.
  • Watertight system -
    Pipe and riser/shaft connection with the chamber base is absolutely watertight and unique design of pipe joints with click ring and sealing ring makes the system completely leak proof.
  • Hygienic and safe -
    Trouble free performance of the joints without blockage and leakage ensures high standards of hygiene.
  • Minimum excavation cost -
    Because of simple jointing technique, trench width can be kept minimum and smoother bore of the pipe allow high flow rates at relatively flatter gradients.
  • Different flow profile designs -
    Inspection chambers and manholes are available in different flow profiles/configurations of inlet(s) and outlet in different sizes to suit the site requirements. Unwanted inlets if any can be closed with the help of blanking plugs.
  • Minimal Maintenance -
    Optimum functional qualities and good hydraulic properties play an important part in reducing the need for jetting and other forms of maintenance, and therefore operational costs are considerably reduced.
  • Longer life and overall economy -
    Being free from problems like corrosion and susceptibility to chemical reactions and as designed to carry soil and traffic loads, it is sufficiently durable, and offers long and trouble free service life.


Components of U – Drain System
Inspection chambers -

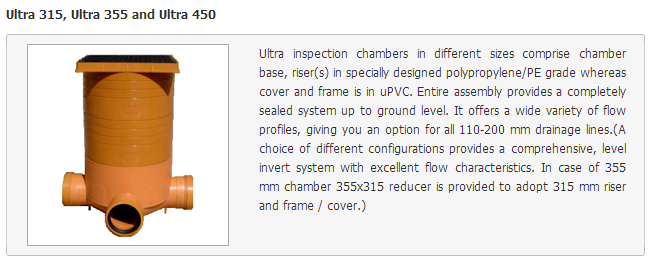

Following different sizes of Ultra Inspection Chamber and Manhole along with cover solution are available in the range.1. Ultra 250 with and without trap provision with 110 mm inlet(s) and outlet. (Size of the trap is 75 mm)2. Ultra 315 mm with 110 mm inlet(s) and outlet isavailable in seven different flow profiles/ ….configurations.3. Ultra 355 mm with 160 mm inlet(s)/ outlet in 5 different configurations.4. Ultra 450 mm multiple inlet(s) with two 110 mm inlets at 45° and two 160 mm inlets at 90° with main inlet/outlet in 160 mm. Ultra 450mm chamber in different flow configurations with 200mm main inlet(s)/ outlet and 110, 160, and 200 mm branch inlet(s).5. Ultra 600 mm with 250 mm inlet(s) and outlet in six different configurations. (Eccentric reducers in 250 x 200 and 250 x 160 mm are available to convert inlet(s)/outlet to required size.)6. Ultra 1000 mm manhole with 160,200, 250, 315 inlet (s) / outlet in different configurations.
